200-500 KG Hr Auutomaitc Peanut Butter Production Line Manfuacturer

Descripción

Description of automatic peanut butter production line:

This production line includes:

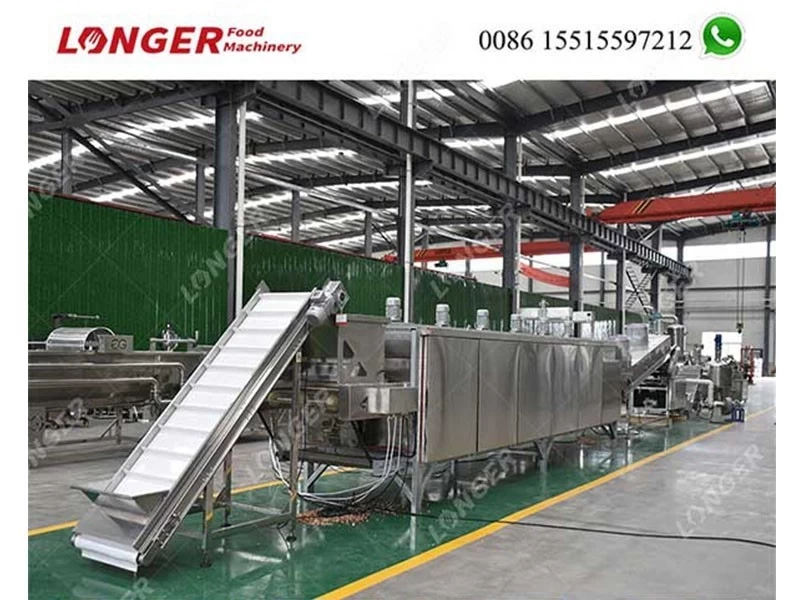

Peanut Roaster --- Conveyor Belt --- Elevator --- Peanut Red Skin Peeling Machine --- Peanut Butter Grinder Machine --- Storage Tank --- Cooling Tank --- Mixing Tank --- Vacuum Tank --- Butter Filling Machine.

We have different capacities with varying standards, please tell me your detailed demands.

Processing of peanut butter production line:

Elevator - Roasting --- Cooling - Peeling - Selecting - Milling - Mixing - Cooling - De-gassing - Liquid filling machine

Instruction of 200 - 500 kg / h peanut butter production line:

• Roasting: Batch roaster's working temperature is 200-210 ° C, 20-30 minutes. Use batch roaster will bake some delicious smells.
• Cooling: Peanut will be send cooling belt to cool.
• Peeling: Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted andun-blanched peanut kernel is picked up by manual or mechanical.
• Primary grinding: Using steel grinder to make the first grinding.

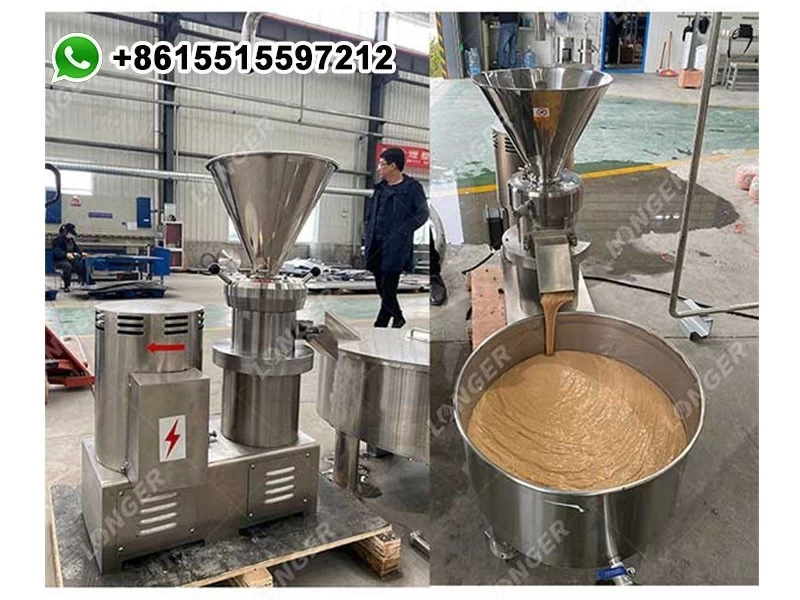

• Second grinding: Using colloid grinder to make the second grinding, the fineness of grinding is controlled below 7μm, temperature of grinding is controlled below 68C.
• Mixing: Make the butter more homogeneous.
• Cooling: The butter through second grinding should be refreshed immediately. The temperature should go down 45 ° c
• De-gassing: Take out the air from peanut butter.
• Storage tank: Settling down in the storage tank till the temperature drop to air temperature.
• Packing: By the filling machine, the finished peanut butter is packed into 200g / 500g / 1000g bottle.
